| PULSE OXIMETERS & FETAL DOPLER |
| |
 |
| |
| PULSE OXIMETERS |
| PM60A |
Principle of the PM60A1 Patient Monitor is as follows: Photoelectric Oxyhemoglobin Inspection Technology is adopted in accordance with Capacity Pulse Scanning & Recording Technology,the Pulse Oximeter can be used in measuring the pulse oxygen saturation and pulse rate through finger.The product is suitable for being used in family, hospital, oxygen bar, community healthcare, physical care in sports (It can be used before or after doing sports, and it is not recommended to use the device during the process of having sport) and etc. |
| |
| Major Features |
 |
Small in volume、light in weight and convenient in carrying |
|
Operation of the product is simple ,low power consumption |
|
SpO2 value display |
|
Pulse rate value display, bar graph display |
|
Pulse waveform display |
|
The display mode can be changed |
|
With backlight,and changeable backlight-time |
|
A pulse rate sound indication |
|
Alarm function:bases the Upper/Down alarm Range,have three classes voice and photosensitive alarmWith clock function |
|
Full screen touch operation |
|
Big capacity SD card case storage(almost 10000 cases) |
|
Battery capacity indication |
|
Low-voltage indication: low-voltage indicator appears before working abnormally which is due to low-voltage，and with alarm function |
|
Connected with an external oximeter probe |
|
Trend Review Graph/Table:Resolution from 1s, 5s, 10s, 30s, 1min, and so on. Store latest 96 hours trend data |
|
Alarm:Adjustable High and Low limits. Three level audible and visual alarm , latest 50 alarm information and waveform displays 8 seconds which 4 seconds are before a certain time when the alarm is turned on and 4 seconds are after appointed time when the alarm is turned on |
|
Wave Review:Store lastest 24 hours waveform of the current real-time monitoring patient. |
|
Upload data：Data stored in SD card can be uploaded to computer and analyzed by software |
|
"SpO2 Assistant". |
|
Wireless communication function（PM60A1W） |
|
| |
| Major Performance : |
| |
Display Mode：3.5 inch TFT color display;
Screen Resolution：320*240
SpO2 Measuring Range：0%～100%, (the resolution is 1%).
Accuracy：70%～100%：±2% ,Below 70% unspecified.
PR Measuring Range：30bpm～250bpm, (the resolution is 1bpm)
Accuracy：±2bpm or ±2% (select larger)
Measurement Performance in Weak Filling Condition: SpO2 and pulse rate can be shown correctly when pulse-filling ratio is 0.4%. SpO2 error is ±4%, pulse rate error is ±2 bpm or ±2% (select larger).
Resistance to surrounding light: The deviation between the value measured in the condition of man-made light or indoor natural light and that of darkroom is less than ±1%.
Power Consumption：less than 300mA
Voltage: DC 5.0V
Power Supply: Built-in recharge Li-Polymer
Battery working hour: 9 hours
Safety Type: Interior Battery，BF Type |
| |
| AccessoriesSell in standard |
user manual
USB data line
A power adapter（Model:CMS0105）
a disk (PC software+a user manual)
An oximeter probe |
| |
| Sell in addition |
| Other oximeter probe(Refer to probe application instruction for details and notice renewal) |
| |
| Physical Identity |
Dimension: 130(L)x73(W)x25(H)mm
Weight: About172g(with battery) |
|
| |
| |
| |
 |
| |
| FETAL DOPLER |

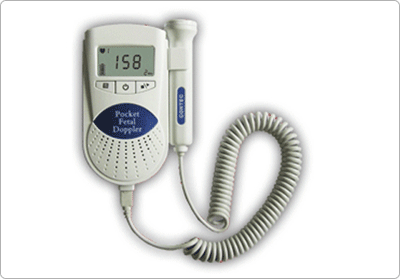

| Sonoline B |
Sonoline B Pocket Fetal Doppler is a hand-held obstetrical unit, which can be used in hospital, clinic and home for daily self-check by pregnant woman.It contains components of ultrasonic signal transmitter and receiver, analog signals processing unit, FHR calculating unit, LCD display control unit etc.Sonoline B Pocket Fetal Doppler is a high performance model with (fetal heart rate) LCD digital display. It has 3 work modes: real-time FHR display mode, averaged FHR display mode, and manual mode .It has audio output and can be connected with earphone or recorder with audio input. |
| |
| Main Features |
Battery status indicator
Low power inspection of the battery
Built-in speaker
Output for headphones
The probe can be changeable
Probe inspection
Backlight
Auto shut off
Support 2MHz,3MHz,4MHz,5MHz,8MHz probes
Two pieces of standard 1.5V alkaline battery available which can work no less than 10 hours |
| |
| Main Performance: |
| |
Anti-electroshock Type: Internally powered equipment
Anti-electroshock Degree: Type B applied part
LCD Display: 45 mm × 25 mm
FHR Measuring Range: 50 BPM ~ 240 BPM (BPM: beat per minute)
Resolution: 1 BPM
Accuracy: ± 2 BPM
Power Consumption: < 0.8 W
Voltage: DC 3.0 V
Power Supply：TWO 1.5V（AA size）alkaline battery
Suitable Using Range: Suitable for use after the 12th week of pregnancy
Auto Shut-OFF: After 1 minute no signal, power off automatically
Probe:
Nominal Frequency: 2.0 MHz
Working Frequency: 2.0 MHz ± 10%Ultrasound
Output Power: P < 10 mWUltrasonic
Output Intensity: Isata < 5 mW/cm2Negative Peak
Sound Pressure: p_ < 0.5
MPaWorking Mode: Continuous wave doppler
Effective Radiating Area of Transducer: 208 mm2 ± 15%
Physical Characteristic
Dimension: (L) 135 mm × (W) 95mm × (H ) 35 mm
Weight: About 180 g (including batteries)
Qualification
Passed FDA and CE
|
| |
 |
Pocket Fetal heart rate detector can display the FH R exactly on the LCD (BF-510 without LCD) |
|
The real time FHR on the LCD of BF-510S can be frozen to show to a pregnancy women by pressing a freeze button. |
|
Sound is very loud and clear by using a headphone |
|
Be alarmed while power of battery is not enough or FH R over the limit (BF-510S) |
|
Only gog and designed with a fashion model |
|
Use 9.0V dry battery, Built-in-dry battery can work intermittently over 4 hours |
|
Arechargeable battery and adapter as optional accessories and very economical and convenient. |
|
|
| |
| |
 |

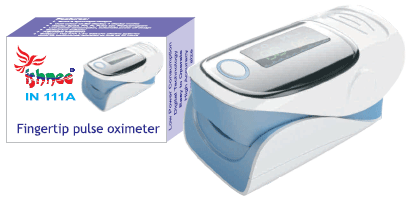

| IN111A |
- Small & Lightweight designs
- Dual colour OLED display, 4 display modes
- Display Spo2, PR, PI, Pulse bar, Plethysmogram
- Low power consumption, automatic power off design
- Battery-low indicator
- Adjustable brightness
- Battery: Two AAA 1.5V, 600mAh alkaline batteries could be continously operated as long as 30 hours.
|
| |
| |
|
|
IN111C
PULSE OXIMETER
WITH ALARM |
IN 111D
PORTABLE FETAL DOPPLER |
|
| |
| |
|
IN111B
PORTABLE FETAL DOPPLER |
|
| |
|
|
| |
| |
|
